| 适配阀门类型 | 90°旋转的角行程阀门 |
|---|---|
| 环境温度 | -20℃-+80℃（可选-40℃到200℃） |
| 连接标准 | 符合ISO5211、DIN3337、NAMUR标准 |

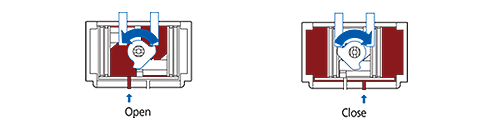

运行原理 | 齿轮齿条式 |
动作方式 | 双作用 / 单作用（弹簧复位） |
 | |

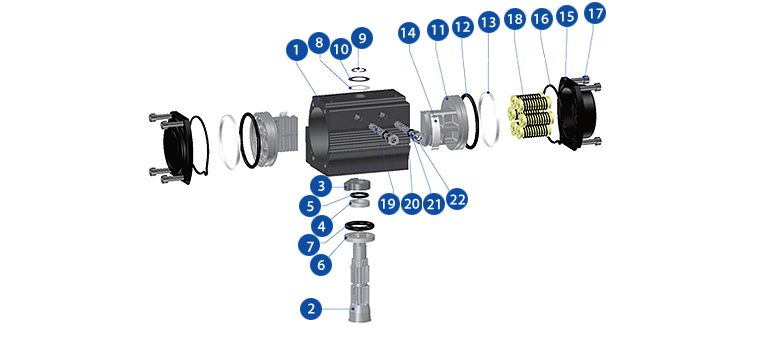

零部件
| 序号 | 部件名称 | 部件材料 |
|---|---|---|
| 1 | Body | Aluminum Alloy |
| 2 | Shaft | Steel Alloy (Nickel Plated) |
| 3 | Stopper | Steel Alloy |
| 4 | Bushing (Top) | Engineering Plastic |
| 5 | Body O-ring (Top) | NBR |
| 6 | Bushing (Bottom) | Engineering Plastic |
| 7 | Bushing (Bottom) | NBR |
| 8 | Body Washer (Bottom) | Engineering Plastic |
| 9 | Shaft Roller (Bottom) | Stainless Steel |
| 10 | Body Snap-ring | Stainless Steel |
| 11 | Piston | Aluminum Alloy |
| 序号 | 部件名称 | 部件材料 |
|---|---|---|
| 12 | Piston O-ring | NBR |
| 13 | Piston Guide-ring | Engineering Plastic |
| 14 | Piston Pad | Engineering Plastic |
| 15 | Cover | Aluminum Alloy |
| 16 | Cover O-ring | NBR |
| 17 | Cover Bolt | Steel Alloy |
| 18 | Spring Unit | Steel Alloy |
| 19 | Adjust Bolt | Steel Alloy |
| 20 | Adjust O-ring | NBR |
| 21 | Adjust Washer | Steel Alloy |
| 22 | Adjust Nut | Steel Alloy |
